The Sign Maker for the very best in Bespoke Signs & Signage : This page has hanging sign brackets in many styles, suitable for most signs.

Hanging Brackets
for Signs

UK Sign Maker

Hanging Sign Brackets

The width of your sign will dictate which hanging brackets are suitable. The hanging eyes on the sign need to be at least 25mm in from the edge of the sign. Therefore the sign will need to be at least 50mm larger than distance between the bracket hanging eyes.

If the hanging sign bracket is to go on a post the PG bracket, TZJECT 9 or  a wrought iron bracket is ideal. The post mounted Deco, Original  or TZJECT 17 is also suitable for a 4" x 5" post. We can also joint in an extra piece of timber onto a posts to suit other brackets.

Most of the brackets come with clips or hooks. If you need fittings for the sign itself - click here. Sign Bracket P&P - I

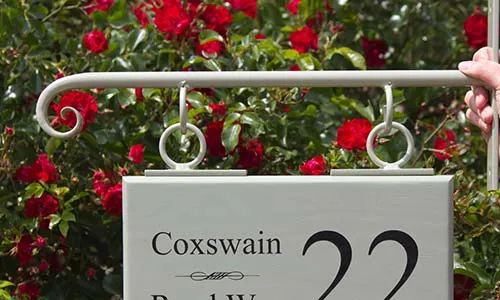

Wrought iron hanging sign bracket
If you are confused or need some help- Email us @ sales@sign-maker.net and we will reply with a quote!

Wrought Iron Brackets - Includes VAT

Hanging House Sign

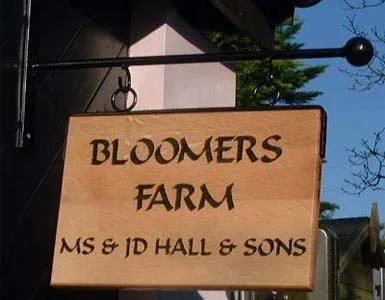

We also have a range of Wrought Iron Brackets made for us by a local blacksmith. They are forged on a traditional coal forge. The metal is shaped by hammering, bending and twisting to the required shape. Because they are hand made measurements can vary slightly. The price includes a wrought iron top fixing plate or two wrought iron rings

Wrought Iron Rings

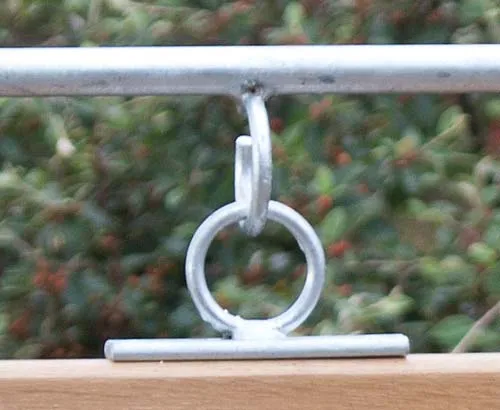

The brackets are then galvanised to stop them rusting. We can leave them galvanised and unpainted for a £5 discount. Most people prefer to have them paint black and these are priced in the tables below. Another option is to have them powder coated. This is a much tougher and far more professional looking finish. The cost is an extra £25 for black or white, £45 for other colours. Please add extra week to production time.

Ball End Wrought Iron Brackets

Ball end sign bracket
Buy Online Now

All wrought iron brackets are suitable for  fixing to a wooden post

Code Length Distance between
hanging hooks
For Sign Widths Cost
Rings Fixed Hanger
BWS 440mm 210mm 260mm - 350mm 305mm £77
BWM 520mm 240mm 290mm - 470mm 380mm £82
BWL 630mm 250mm 310mm - 550mm 460mm £99
BWX 780mm 360mm 410mm - 730mm 610mm £120
BWXX 1000mm 510mm 600mm - 850mm 755mm £153

Scroll End Wrought Iron Brackets


Buy Online Now

Code Length Distance between
hanging hooks
For Sign Widths Cost
Rings Fixed Hanger
SWS 430mm 230mm 280mm - 350mm 305mm £88
SWM 520mm 255mm 310mm - 470mm 380mm £93
SWL 610mm 290mm 340mm - 550mm 460mm £104
SWX 780mm 360mm 410mm - 730mm 610mm £147

Scroll End Wrought Iron Brackets
with extra Scroll on top

Hanging Scroll Bracket
Buy Online Now
Code Length Distance between
hanging hooks
For Sign Widths Cost
Rings Fixed Hanger
SSWS 430mm 230mm 280mm - 350mm 305mm £108
SSWM 520mm 255mm 310mm - 470mm 380mm £113
SSWL 610mm 290mm 340mm - 550mm 460mm £124
SSWX 780mm 360mm 410mm - 730mm 610mm £167

Medieval Wrought Iron Brackets
Medieval style wrought iron bracket

Code Length Distance between
hanging hooks
For Sign Widths Cost
Rings Fixed Hanger
MWS 430mm 230mm 280mm - 350mm 305mm £275
MWM 520mm 255mm 310mm - 470mm 380mm £305
MWL 610mm 290mm 340mm - 550mm 460mm £325
MWX 780mm 360mm 410mm - 730mm 610mm £385
This medieval style wrought iron bracket has a more intricate design. The rings and hangers are also more substantial. It is a very heavy duty hand made bracket.

The standard brackets above are ideal for fixing to walls or posts. However our blacksmith will make the fixing plates in other shapes eg round, diamond or square. The price will be the same, but it will take an extra two weeks to make.

Steel Post with Bracket

We asked our blackmith to design a metal post with hanging bracket attached and he has done an amazing job. The box steel posts is 2.5m high, 610mm to end box steel horizontal, 730mm in total with 300mm between hooks.

Cost without any extra fixings £288

These are all powder coated black as standard and are normally held in stock. Other sizes and colours can be made to order.

Buy Online Now

RS Range - Excludes VAT

The following three hanging brackets are of welded construction, manufactured from steel and powder coated black or white. They are all supplied with black or white plastic straps and saddles The PG bracket is ideal for posts as the base plate is narrow. We also have unframed PVC or Metal Panels available for these brackets - click here

MF Brackets

Brackets (MF)



Code Length Distance between
hanging straps
For Sign Widths Cost
MFL 725mm 400mm 450mm - 675mm £64
MFP 630mm 330mm 380mm - 580mm £58

Buy Online Now


PG Brackets

Brackets (PG)

Suitable for  fixing to a wooden post

Code Length Distance between
hanging straps
For Sign Widths Cost
PGL 756mm 400mm 450mm - 706mm £85

Buy Online Now


AF Brackets

Brackets (AF)
Wall Plate 150mm x 150mm

Code Length Distance between
hanging straps
For Sign Widths Cost
AFL 725mm 400mm 450mm - 675mm £80
AFP 630mm 330mm 380mm - 580mm £75


Buy Online Now


PSP Brackets

PSP Bracket
Wall Plate 150mm x 150mm

Code Length Distance between
hanging straps
For Sign Widths Cost
PSP 610mm 330mm 380mm - 560mm £80

Available Black or White

Buy Online Now

AS Range - Excludes vat

The following three Large Hanging Brackets are again of welded construction and powder coated black, but other colours are available on request. Stainless Steel shackles are included in the price.

Scroll Bracket

Scroll Bracket

Length Distance between
hanging eyes
For Sign Widths Cost
915mm 600mm 650mm - 865mm £90

Sunrise Bracket

Sunrise Bracket

Length Distance between
hanging eyes
For Sign Widths Cost
915mm 600mm 650mm - 865mm £90




Circles Bracket

Circles Bracket

Length Distance between
hanging eyes
For Sign Widths Cost
915mm 600mm 650mm - 865mm £90

Buy Online Now

ID Range - Excludes vat

Another range of sign hanging brackets are of welded construction, manufactured from steel. Each bracket comes fully galvanised and powder coated giving a durable gloss black finish. Fittings are included. The post mounted version has a
100mm metal plate. This bracket would need a 4" x 5" Oak post.  The standard 4"x4" post planes down to 95mm x 95mm
Panels also available - Click here

The Deco

The Post Mounted Deco

Small available wall mounted or post mounted Buy Online Now

  Length Distance between
hanging holes
For Sign Widths Cost
Sm Deco -
Wall Mounted
750mm 390mm 350mm - 700mm £99
Sm Deco -
Post Mounted
750mm 390mm 350mm - 700mm £99
Lg Deco -
Wall Mounted
1000mm 600mm 650mm - 950mm £127

The Original

Post mounted Original

Original available wall mounted or post mounted. Buy Online Now

  Length Distance between
hanging holes
For Sign Widths Cost
Original -
Wall Mounted
750mm 390mm 440mm - 700mm £99
Original -
Post Mounted
750mm 390mm 440mm - 700mm £99
Lg Original -
Wall Mounted
1000mm 600mm 650mm - 950mm £127


The Spiral Flow

Wall Mounted Spiral

Available only as wall mounted or on a post with cross bars - see below

  Length Distance between
hanging holes
For Sign Widths Cost
The Spiral Flow 750mm 390mm 440mm - 700mm £120

Buy Online Now


If you want to fix one of the larger brackets to a wooden post we can adapt the post with two cross bars to fit the bracket.

The price is the cost of the extra timber plus £9.50 per joint

For more information about wooden posts - click here

Special Posts

TZ Traditional Range

This is another range of sign brackets which are slightly more expensive and made with heavy duty steel. The are nine different brackets styles along with fourteen different panels which are made in 19mm high density foamed PVC. Fittings included with PVC panel (not with bracket).  For sign widths 400mm - 850mm  Prices £86 - £183 Click here for more details.

TZ Range TZ Sign Brackets TZ Sign Brackets

TZ modern Range

These are simple sign brackets made from heavy duty steel which is then zinc and powder coated black. They have a round shaft and a steel ball finial and are supplied with free wall fixings. They come in five sizes, the 850mm long sign bracket being the most popular. Fittings included with PVC panel (not with bracket). For sign widths 400mm - 1000mm. Prices £69 - £107  .Click here for more details.

Arch Top Panel

Oval Panel

Rectangulat Panel


  More Sign Fittings - Click Here Post & Packing - J

Wooden Posts with Arms

Finally you may wish to hang your framed sign from a wooden post and arm. We normally make these for our hanging wooden signs but they would also work well for hanging framed signs.

Wooden Hanging Sign Bracket

The following prices include 8 foot post, with hanging arm mortised with chains and fittings

We make the hanging arm and position the fittings to suit the size of the sign.

3" x 3" Softwood (painted) - £112 - N
4" x 4 " Softwood (painted) - £180 - N
3" x 3" Oak / Iroko (varnish) - £191
- N
3" x 3" Oak (painted) - £232 - N
4" x 4" Oak (satin varnish) - £310 - N
4" x 4" Oak (painted) - £379 - N
