The Sign Maker for the very best in Bespoke Signs & Signage : A good selection of sign lights and lighting for signs - both LED and Standard.

Sign Lighting
Trough - Cowl - LED - Spot Lights

UK Sign Maker

Lights for Signs - TZ Range

We have a whole range of lighting options for the TZ range of projecting signs. Many of the lights can also be used for other types of sign as well. Trough lighting is available in both fluorescent and LED options. Although the LED is more expensive to buy it is much cheaper to run and the typical life of LED lamp is 50.000 hours.

Trough lighting brackets are available in black or white as standard. Other RAL colours are available at an additional cost of £50 plus VAT. On the trough lighting the cable entry is on the left hand end unless otherwise specified.

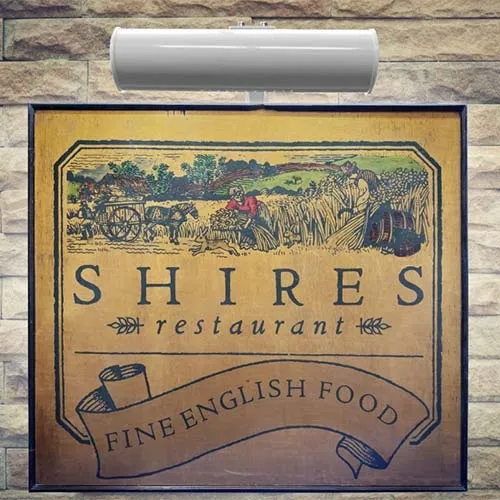

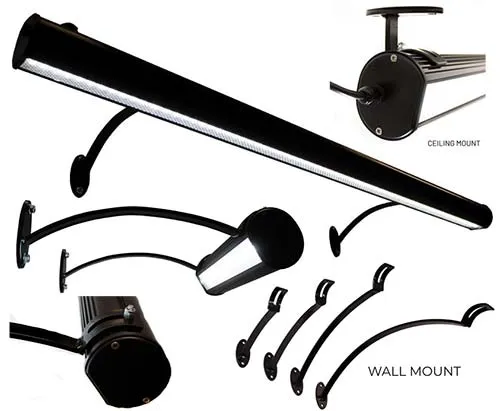

LED Trough Lighting - Slick design - only 50mm diameter.  Can be used as an uplighter or downlighter.

Excludes VAT Bracket Size
Length 200mm 300mm 400mm
2ft 600mm £163 £170 £173
3ft 900mm £195 £202 £205
4ft 1200mm £228 £235 £238
5ft 1500mm £260 £267 £270
6ft 1800mm £296 £303 £396
8ft 2400mm £346 £353 £356
10ft 3000mm £395 £402 £405
12ft 3600mm £444 £451 £454
Larger sizes of LED trough lights for signs can be quote for
LED Trough Lighting

1000 lumens per meter LED output

High lighting chip technology giving 70 lumens per watt output
14.4W per metre 75% energy saving compared to fluorescent

Full CE certification and ROHS compliant
Fitting tested and certified to IP64
Illuminence level of 267 candelas per square metre

These are supplied with 200mm long brackets as standard which are suitable for signs up to 600mm high. For signs between 600 - 1100mm high you will need a 300mm bracket . For signs 1100 - 1500mm high you will need a 400mm bracket.For larger signs there is a 500mm bracket which cost the same as the 400mm

Fluorescent Trough Lighting


Excludes VAT Bracket Size
Length 200mm 300mm 400mm
2ft 600mm £117 £124 £127
3ft 900mm £124 £131 £134
4ft 1200mm £135 £142 £145
5ft 1500mm £150 £157 £160
6ft 1800mm £177 £184 £187
8ft 2400mm £202 £209 £212
10ft 3000mm £247 £254 £257
12ft 3600mm £296 £303 £306
Larger sizes of LED trough lights for signs can be quote for
Sign trough lights

EU, EMC, CE compliant.

Electrical safety tested and certified to BS

EN 60598-1: 2004 & BS EN 60598-2-1: 200

Mirror anodized reflectors.

The illuminence level is 250 candelas per square metre

Supplied with 200mm long brackets which are suitable for signs up to 600mm high. For signs between 600 - 1100mm high you will need a 300mm bracket . For signs 1100 - 1500mm high you will need a 400mm bracket. For larger signs there is a 500mm bracket which cost the same as the 400mm.

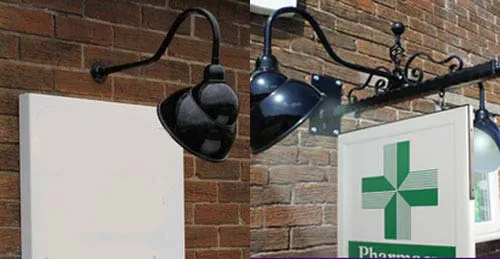

Swan Neck Cowl Lights

Very traditional style of lighting which suitable for old and modern styles of building.

Available in silver or black and are supplied with a low energy log life lamp.

Cost - £91 plus VAT

Cowl Lighting for signs

Steel construction and powder coated black or silver

Protruding from wall 520mm and the diameter of the shade being 240mm at the widest point


2 Swan Neck Cowl Light Kits

Kit  contains 2 cowl lights, 2 lamps plus a mounting bracket to fix to any TZJECT projecting brackets - square arm and round arm.

Available in silver or black and are supplied with a two low energy log life lamp.

Cost - £199 plus VAT

2 Cowl lighting kit for projecting signs

Steel construction and powder coated black or silver

Protruding from wall 520mm and the diameter of the shade being 240mm at the widest point


Single Wall Mounted Spot Light

Wall mounted polycarbonate spot light.

Cost - £35 plus VAT

Spot lights

IP65 rated


PAR 38 80w lamp included

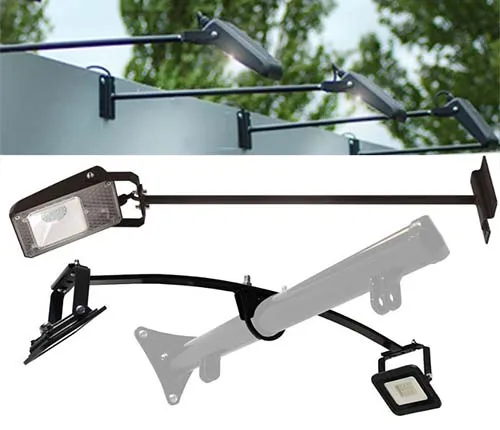

LED Floodlight Kit

Kit  contains 2 LED die-cast aluminium floodlights plus a mounting brackets to fix to any TZJECT projecting brackets - square arm and round arm.

Available black only with adjustable head. Cord length 25cm

Cost - £92 plus VAT

LED Floodlights
  • Long Life LED >30000 Hrs

  • Nominal Power Watts: 10w

  • Equivalent Halogen Watts: 85W

  • Nominal Luminous Flux Lumen - 800 lm

  • IP65 Rated

  • Dimensions 115 x 95 x 90mm

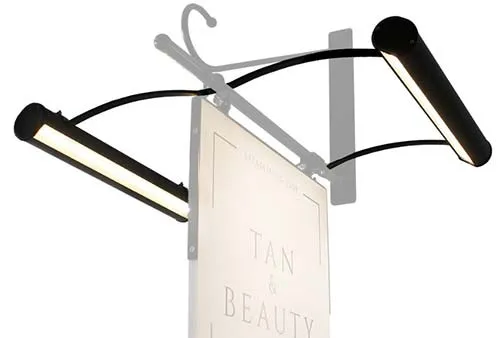

LED Trough Lighting Kit

Kit  contains two 610mm long led lights plus a mounting brackets to fix to any TZJECT projecting brackets - square arm and round arm.

Sleek design only 50mm diameter

Available as standard in black or white. Other RAL colours available @ £50 extra

Cost - £286 plus VAT

Sign Lighting Kit

1000 lumens per meter LED output
High lighting chip technology giving 70 lumens per watt output

14.4W per metre 75% energy saving compared to fluorescent
50,000 hours lamp life

Full CE certification and ROHS compliant

Fitting tested and certified to IP64


Standard Floodlight Kit

Kit  contains 2 standard trough lights plus a mounting brackets to fix to any TZJECT projecting brackets - square arm or round arm.

Available as standard in black or white. Other RAL colours available @ £50 extra

Cost - £228 plus VAT

Trough sign lighting kit

EU, EMC, CE compliant.

Electrical safety tested and certified to BS  EN 60598-1: 2004 & BS EN 60598-2-1: 200
Certified and sealed to IP64.

Mirror anodized reflectors.

The illuminence level is 250 candelas per square metre


Prices include P&P to England, Wales and Southern Scotland (for other areas add difference use H Bracket)


Trough Lighting Kit
